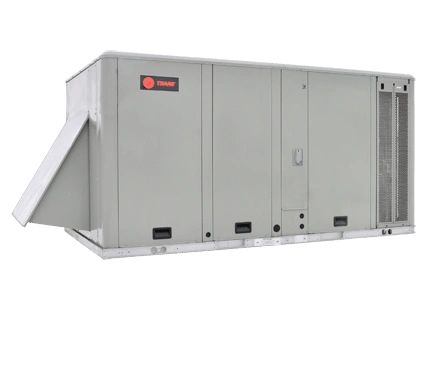

Packaged Precedent™ Rooftop Systems 3 to 10 tons

This line of packaged units ranges from 3 to 10 tons. This factory assembled product is available in cooling with electric heat. Trane customers have been instrumental in setting the standard for a product that provides exceptional reliability, meets stringent performance requirements and is competitively priced.

The Trane 15 SEER Precedent is a flexible, cost effective way to control temperature and humidity. It’s engineered to deliver several benefits: energy efficiency, environmental responsibility and comfort.

Features

  • Accurate, tested sound data
  • R-410A refrigerant
  • C02 sensors – improve indoor air quality
  • Tracker™ light commercial system controls – schedule, monitor and control the entire system to ensure optimal operation
  • ARI 210/240 certified
  • UL approved
  • Available in gas/electric or cooling only with electric heat

Precedent…The Perfect Light Commercial Solution

Things like a compact cabinet, variety of motor and drive types, reversible drain pan, and range of gas and electric heat options make Precedent the perfect choice in either new construction or the replacement market.

  • Compact cabinet is aesthetically pleasing, takes less room in warehouse, lower shipping costs. One piece beveled and ridged top prevents water from pooling, ridges give added strength to top. Smoother design with rounded corners eliminates sheet metal cuts from sharp edges. Recessed access handles reduce shipping damage and eliminates broken handles from improper use. Reduced crating creates less waste to dispose of at site.
  • Two cabinet sizes for 3-5 and two sizes for 6-10 tons with identical footprints so that selected roofcurb fits both.
  • Standard through the base condensate connections allows condensate drain through the curb instead of via a roof penetration. One piece base pan eliminates water leakage.
  • Trane-built scroll compressors so we control the reliability. Patent Pending hybrid 1+1+1 multi-row coil with gaps for easy to clean design – 1 person 30 minutes.
  • Progressive tubular gas heat exchanger with stainless steel burners eliminates need for tubulators, allows for compact cabinet, includes positive pressure gas valve, reliable and proven direct spark ignition. Stainless steel inshot burners for corrosion resistance.
  • Flexible options include convertible airflow;electromechanical or ReliaTel™ microprocessor controls; standard or high efficiency cooling capacities; low, medium or high heat capacities; direct or belt drive – standard or oversized motors choose motor that best meets airflow requirements; 2″ filters (3-10 tons) available;no prepackaged options; choose factory-installed options tailored to suit each job.
  • IAQ double-sloped reversible PVC drain pan can easily be removed for cleaning, ability for drain connections on either side of unit, foil-faced insulation, insulation edges captured or sealed Prevents insulation in air stream.
VoyagerRooftop

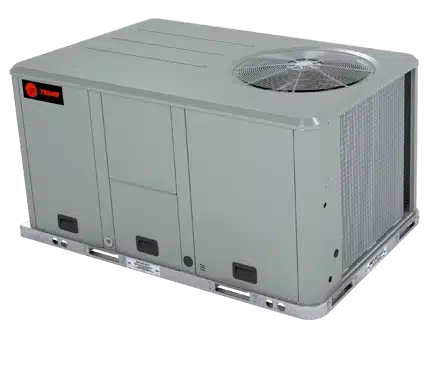

Packaged Voyager™ Rooftop Systems 12½ to 25 tons

This line of packaged units ranges from 12½ to 25 tons. This factory-assembled product is available in cooling/gas heat, cooling with optional electric heat, and heat pump models (12½-20 tons). This product family also includes 12½-20 Tons Cooling and Gas/Electric R-410A models. A packaged unit is a heating or cooling unit that is self-contained.

Features

  • Typical Applications: Low-rise buildings, manufacturing/distribution facilities, and retail outlets.
  • Gas Heat Exchanger: Built to last …
    The drum and tube heat exchanger is designed for increased efficiency and reliability and has utilized improved technology incorporated in the industrial quality packaged unit for over 20 years. The heat exchanger is manufactured using aluminized steel with stainless steel components for maximum durability. The American National Standards Institute (Z21.47) requires that heat exchangers be cycle tested 10,000 times, the same cycle test standard required by UL and AGA. Trane demands that their design be tested to 2.5 times the ANSI standard and has actually tested and passed over 150,000 cycles … that’s over 15 times the ANSI cycling requirement. The negative pressure gas valve found on Voyager™ units will not allow gas flow unless the combustion blower motor is energized. This feature makes Voyager one of the safest gas heat systems on the market today. The forced combustion blower supplies pre-mixed fuel through a single stainless steel burner screen into a sealed drum where ignition takes place. It is more reliable to operate and maintain than a multiple burner system. The Hot surface ignitor is a gas ignition device which doubles as a safety device utilizing a continuous test to prove the flame. The design is cycle tested at the factory for quality and reliability.
  • Electric Heaters
    A wide selection of heater kW sizes are available to fit within the cooling/electric and heat pump rooftops. These electric heaters are constructed of heavy-duty nickel chromium elements. They are internally delta connected for 240 volt and wye connected for 480 and 600 volt. All heaters meet NEC and CEC safety requirements when properly installed, and are UL listed and CSA certified. Power assemblies provide single-point power connection.
  • Dedicated Airflow: Ease of Installation …
    Voyager’s conversionless units provide many time and money-saving features. The dedicated design units, either downflow or horizontal, require no panel removal or alteration time to convert in the field ¨C a major cost savings during installation. Horizontal units come complete with duct flanges so the contractor doesn’t have to field fabricate them. These duct flanges are a time and cost saver.
  • Unit Efficiency
    Along with our standard efficiency units, we offer high efficiency cooling/electric and gas/electric models with EER up to 12.4 ¨C AFUE and Steady State up to 81.0%.
  • Trane Built Compressors: Reliability … Built Into the Heart of the Machine.
    The compressor is the heart of any air conditioner. Voyager™ light commercial units contain the best compressor technology available, in order to achieve the highest performance possible. Most models feature the Trane-built scroll compressors. These compressors are designed specifically to ensure system quality. Five years of operation are simulated in a 16-week test in the system extreme environment test (SEET) facility.
  • Microprocessor Controls… Reliable by Design.
    The Trane Micro was developed with only two thoughts in mind; reliability and comfort. The Micro provides for all unit control whether it be heating, cooling, economizing, or ventilating. It eliminates compressor short cycling and guarantees minimum run times so that the compressors will always be ready to provide the comfort you expect. Fewer moving parts in the control of the components that in the past had to be bought and added to the system on site are now an integral part of the Micro, things like “anti-short cycle timers” and “time delay relay.” In the unlikely event that something does go wrong, on-board diagnostics are there to assist in troubleshooting and getting you back online fast.
  • Easy to Install and Service
    Having a unit that’s easy to install and service is an important benefit for everyone. It means less time on the job and therefore lower costs. Voyager™’s conversionless units provide money and time-saving features to meet these requirements.
  • No job-site conversion … the dedicated downflow and horizontal unit configurations eliminate the need for time-consuming field conversions.
  • U-shaped airflow allows for improved static capabilities. The need for high static motor conversion is minimized and time isn’t spent changing to high static oversized motors.
  • Micro Diagnostics – The Micro’s diagnostics can provide valuable service information about the condition of the unit and are especially helpful when used in conjunction with an Integrated Comfort™ system.
  • Low Voltage Terminal Board – is external to the electrical control cabinet. It is extremely easy to locate, and attaching the thermostat wire is a snap. And, a simple jumper applied to the low voltage terminal board can place the unit in “test mode” for easy problem diagnosis.
  • Access – to all of Voyager™’s components is accomplished by single-side service through the Quick-Sess™ and Quick-Access panels. No more than three screws must be removed to access all components.
  • Quick-Adjust Idler Arm … available on all units, allows easy adjustment of the belt and sheaves without moving the mounted fan motor.
  • Colored and Numbered Wiring … saves time and money tracing wires and diagnosing the unit.
  • Single Point Power … a single electrical connection powers the unit.
  • Application Flexibility
    Voyager was designed to meet the toughest job standards and to handle the most complex applications.
  • High Efficiency Units – Along with our standard efficiency units, we offer high efficiency cooling/electric and gas/electric models up to 25 tons.
  • Factory Installed Options (FIOPS) Voyager™’s wide variety of factory-installed options eliminate time-consuming accessory field installations. Among these options are: Hinged Access Doors, Through-the-Base Electrical with either a Disconnect Switch or Circuit Breaker, Powered or Unpowered Convenience Outlet, Through-the-Base Gas Piping, and many, many more.
  • Airflow is outstanding. The Voyager can replace an older machine with old ductwork and, in some cases, improve the comfort through better air distribution.
  • Sloped Condensate Drain Pans can be found in all Voyager™ units. To improve indoor air quality, these drain pans ensure proper slope and drainage in order to prevent conditions of water stagnation that result in microbial growth.
  • Integrated Comfort™ System
    The Voyager Micro provides advanced diagnostics and status when used in conjunction with Trane’s Integrated Comfort™ systems.
  • VariTrac™– is an electronic control system that provides a thermostat for every comfort zone and the intelligence to control their comfort. Each thermostat allows the VariTrac air damper to carefully monitor and cool the temperature of each zone, eliminating varying temperatures throughout a building. By using microelectronic technology, Trane provides cost effective variable air volume comfort to traditional single-zone office buildings.
  • Tracker™ – building management panel provides microelectronic control and monitoring. Tracker communicates with Voyager zone controllers with the ability to track status points and alarm messages on a communications link, creating a total Integrated Comfort System. Tracker software provides scheduling, monitoring, and timed override capabilities, as well as local and auto dial-out indication of alarms. Operator interface is simple and user-friendly with the use of icons on the keypad and a two-line liquid crystal display (LCD).
  • Tracer™ – Integrated Comfort™ system, when coupled with Voyager™, provides the ultimate in centralized control, monitoring, energy management, and equipment diagnostic functions. Tracer provides the ability to monitor and control the operation of each rooftop unit and coordinate their operation with other HVAC equipment.
  • ICS Status Points
    Assuming economizer with comparative enthalpyUnit status
    Cooling and heating setpoint
    Zone temperature
    Supply fan on/off
    Compressor status
    Heat status
    Condenser fan status
    Exhaust fan on/off
    Minimum damper positions (adjustable)
    Current damper position
    Outside air temperature
    Return air temperature
    Supply air temperature
    Relative humidity
  • ICS Alarm Messages:
    Zone temperature sensor failure
    High temperature input open
    Heat failure limit open
    Outdoor air sensor failure
    Supply air sensor failure
    Return air sensor failure
    Humidity sensor failure – both outside and return
    Local cool/heat setpoint failure
    Minimum position potentiometer failure
    Defrost control failure
    Compressor lockout
    Dirty filter
    Supply fan failure
